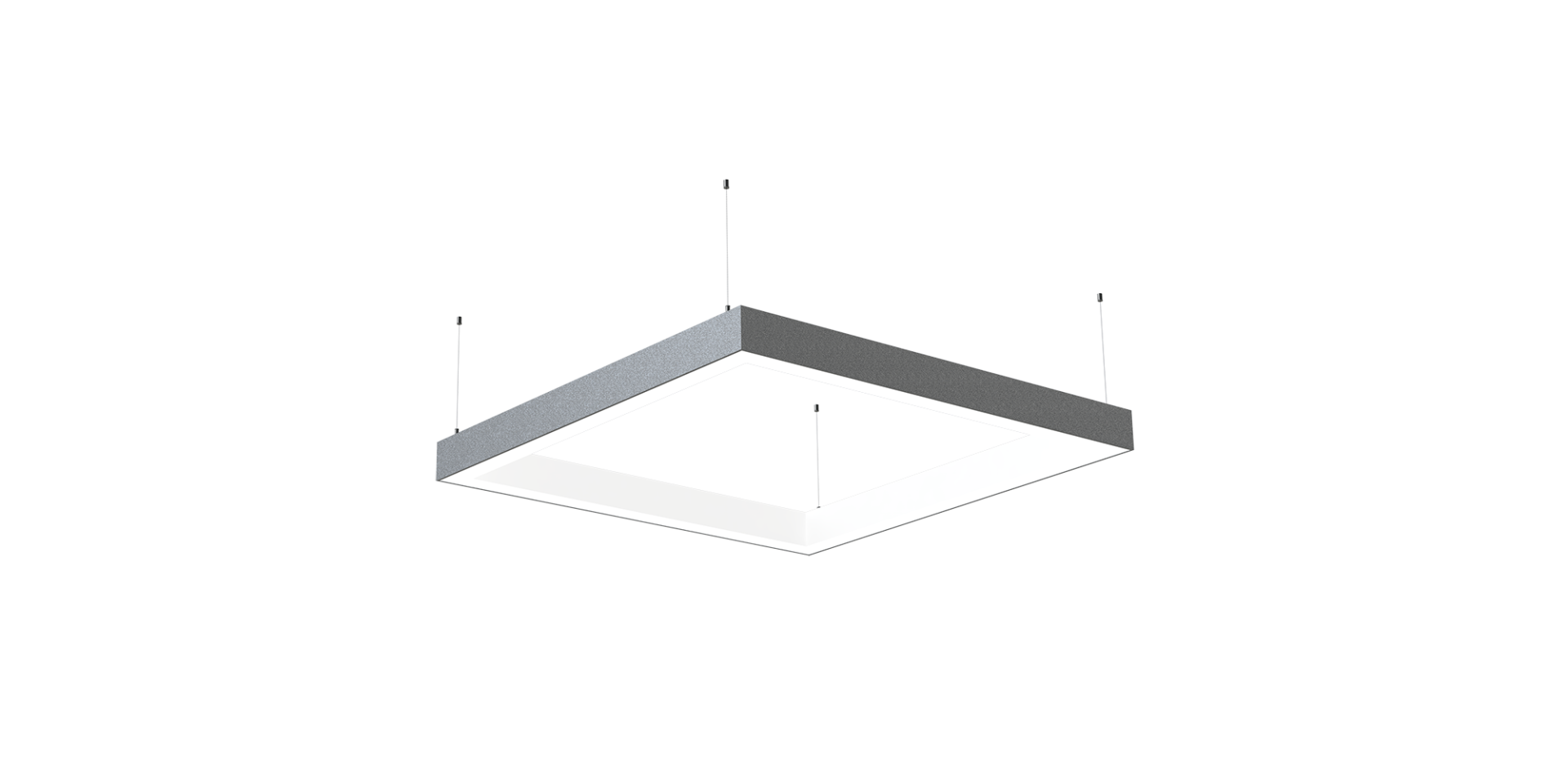

QDRi

Description

Product & Power Options

Product Name	Light Color	Input Voltage (V)	Power (W)	Luminous (lm)	Measurements (mm)	Product Weight (kg)
QDRi6060	WW-NW-CW	24V DC	48	3600	600X600X100	5,1
QDRi6060	WW-NW-CW	24V DC	72	5400	600X600X100	5,1
QDRi9090	WW-NW-CW	24V DC	68	5100	900X900X100	8,2
QDRi9090	WW-NW-CW	24V DC	100	7500	900X900X100	8,2
QDRi120120	WW-NW-CW	24V DC	105	7875	1200X1200X100	10,5
QDRi120120	WW-NW-CW	24V DC	160	12000	1200X1200X100	10,5
QDRi150150	WW-NW-CW	24V DC	135	10125	1500X1500X100	12,5
QDRi150150	WW-NW-CW	24V DC	200	15000	1500X1500X100	12,5
QDRi180180	WW-NW-CW	24V DC	163	12225	1800X1800X100	15,5
QDRi180180	WW-NW-CW	24V DC	245	18375	1800X1800X100	15,5

*Power and Lumen values provided are based off of a cold white (CW) LED.

Key Features

ELECTROMECHANICAL SPECIFICATIONS

• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexiglass diffused cover.
• Suitable for pendant/surface mounting
• Product length standards are; 90cm, 120cm, 150cm and 180cm.
• Different sizes are applicable
• Different colors are applicable for the housing.
• 1,5 m steel wire hangers are included.
• The number of the hangers in the package may vary regarding the product size
