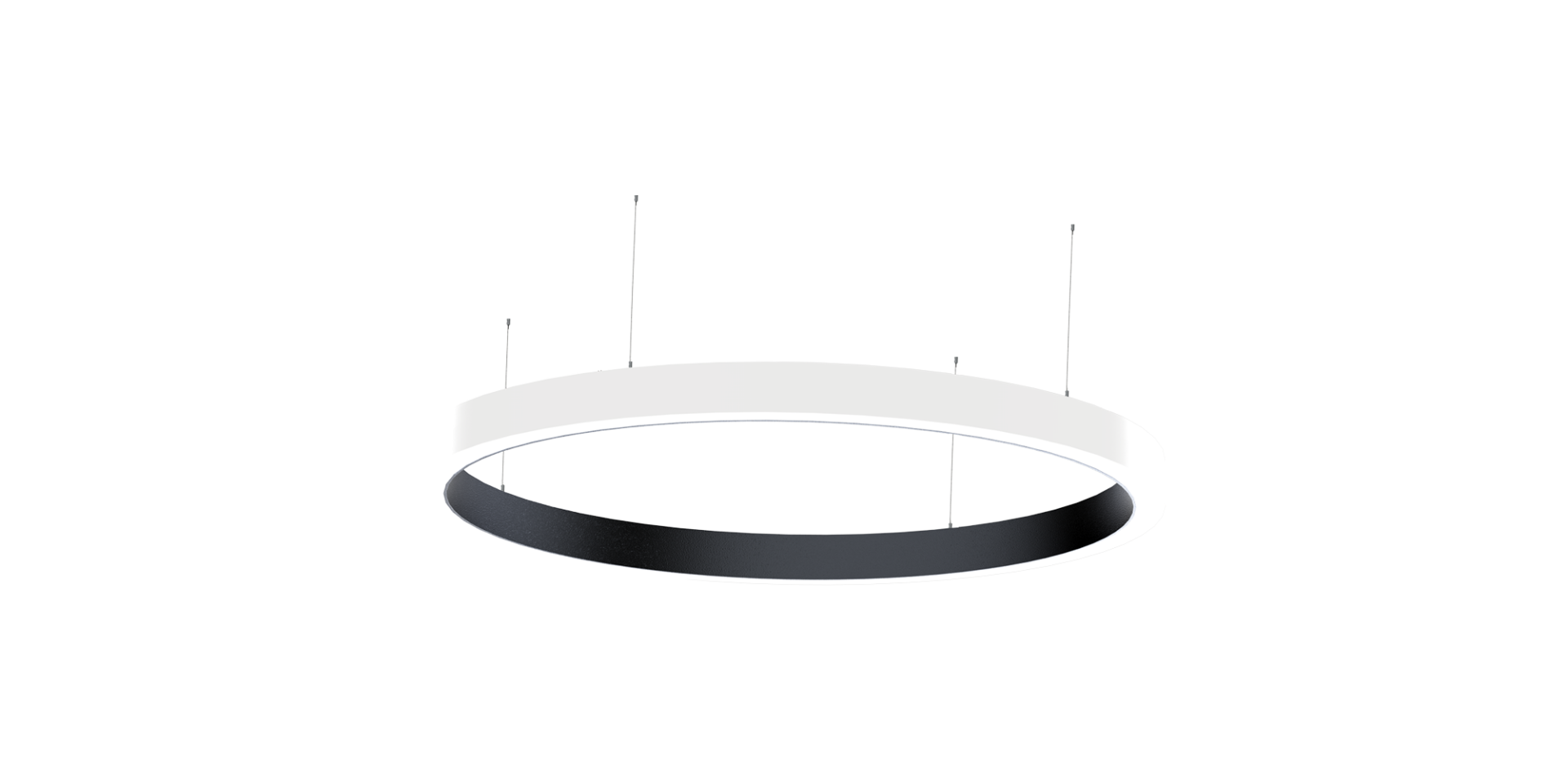

YZKd
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
Diameter (B) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| YZKd90 | WW-NW-CW | 24V DC | 40 | 3000 | 900 | 4,7 |
| YZKd90 | WW-NW-CW | 24V DC | 80 | 6000 | 900 | 4,7 |
| YZKd120 | WW-NW-CW | 24V DC | 60 | 4500 | 1200 | 6,2 |
| YZKd120 | WW-NW-CW | 24V DC | 120 | 9000 | 1200 | 6,2 |
| YZKd150 | WW-NW-CW | 24V DC | 75 | 5625 | 1500 | 7,8 |
| YZKd150 | WW-NW-CW | 24V DC | 150 | 11250 | 1500 | 7,8 |
| YZKd180 | WW-NW-CW | 24V DC | 90 | 6750 | 1800 | 9,3 |
| YZKd180 | WW-NW-CW | 24V DC | 180 | 13500 | 1800 | 9,3 |
*Power and Lumen values provided are based off of a cold white (CW) LED.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexiglass diffused cover.
• Suitable for pendant/surface mounting
• Product length standards are; 90cm, 120cm, 150cm and 180cm.
• Different sizes are applicable
• Different colors are applicable for the housing.
• 1,5 m steel wire hangers are included.
• The number of the hangers in the package may vary regarding the product size
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Housing Color Options
01. ANODIZED
29. WALNUT
30. DARK WALNUT
31. OAK
32. LIGHT WALNUT
RAL9005
RAL9016

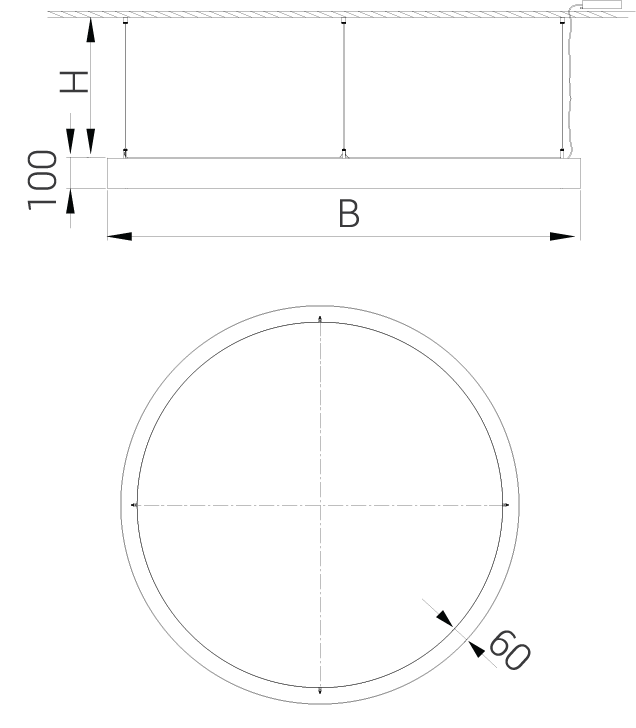

Technical Draw
