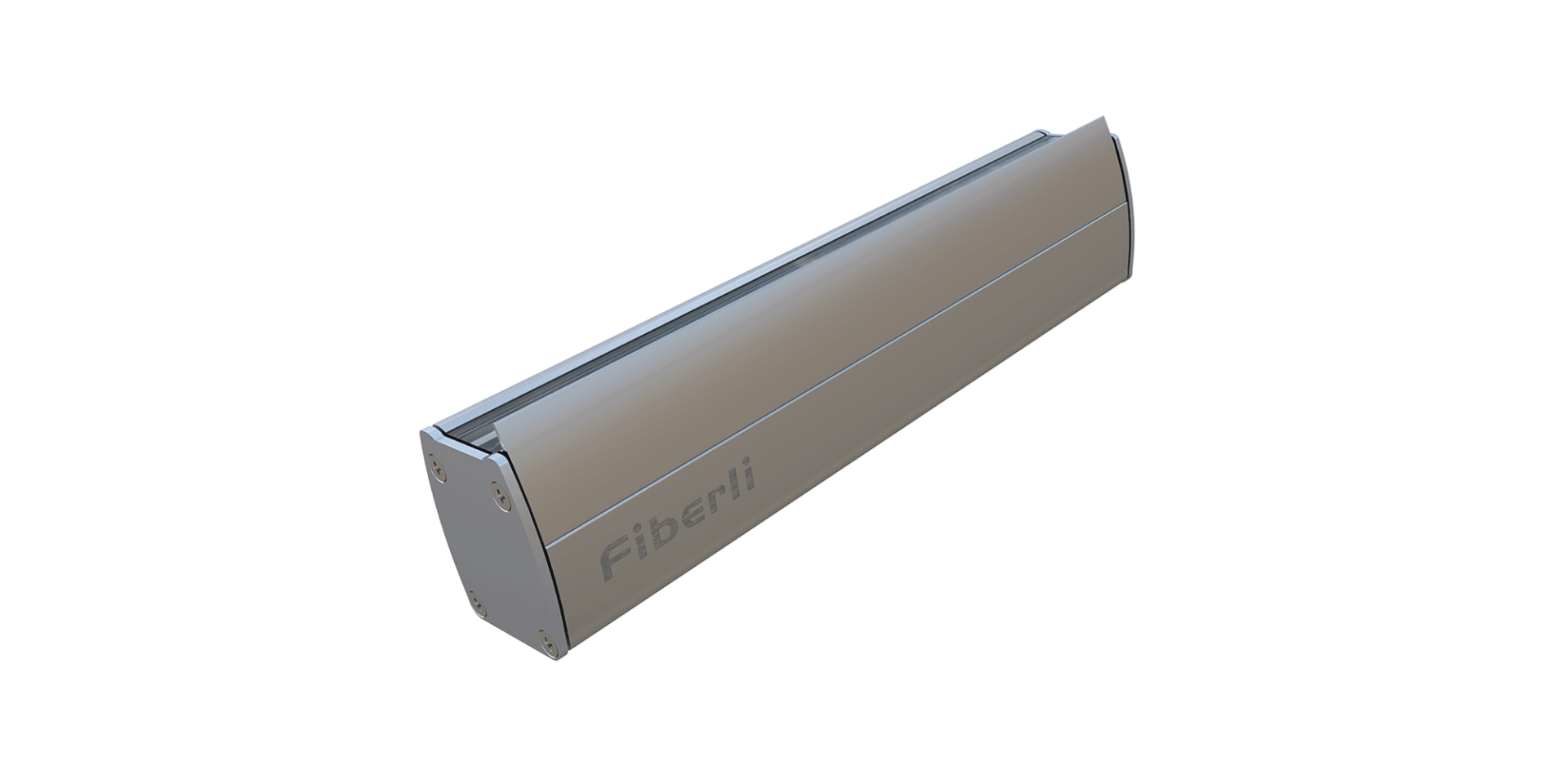

WLT RDMX
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|
| WLT109-RDMX | RGB | 220-240V AC | 12 | 360 | 1 |
| WLT218-RDMX | RGB | 220-240V AC | 23 | 600 | 1,5 |
| WLT327-RDMX | RGB | 220-240V AC | 34 | 900 | 2,4 |
| WLT436-RDMX | RGB | 220-240V AC | 45 | 1190 | 2,9 |
| WLT112-RDMX | RGBW/A | 220-240V AC | 16 | 360 | 1 |
| WLT224-RDMX | RGBW/A | 220-240V AC | 31 | 600 | 1,5 |
| WLT336-RDMX | RGBW/A | 220-240V AC | 45 | 900 | 2,4 |
| WLT448-RDMX | RGBW/A | 220-240V AC | 60 | 1190 | 2,9 |
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile
• Polycarbonate luminaire glass
• PVC side covers with invisible gland outlet and
UV protection
• Stainles steel fixture stand
• High efficiency group lnes
• IP68 air vent
• RDMX configuration
• IP67 socket fot DATA-SIGNAlS
Lens Options
Accessories
33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
26000122 : SOCKET RDMX L:100cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
26000150 : SOCKET RDMX L:200cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
26000151 : SOCKET RDMX L:400cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
26000152 : SOCKET RDMX L:600cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
26000153 : SOCKET RDMX L:800cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
26000154 : SOCKET RDMX L:1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION
Mounting Accessories

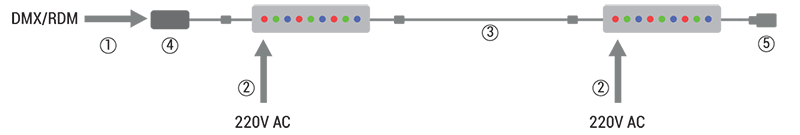

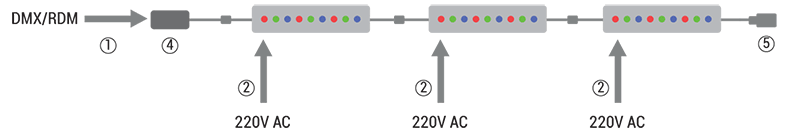

Connection Options
(1) DMX DATA CABLE, 33400474 : CABLE 2X0,22 KR-SY LI2Y(ST)CH TP GREY
(2) AC SUPPLY CABLE, 3x1mm TTR
(3) 26000xxx : SOCKET RDMX L:100/200/400/600/800/1000cm 4 PIN MALE-FEMALE DOUBLE SIDED EXTENSION IP67 (YM)
4) 33600755: RDMX INPUT JOINT
(5) 33600696: RDMX TERMINATOR
Cable Direction Options

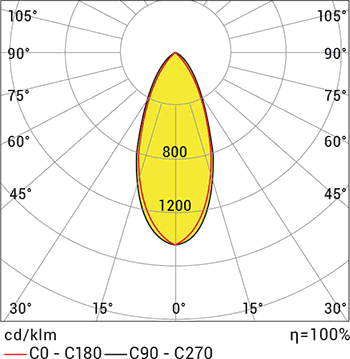

Product Diagrams

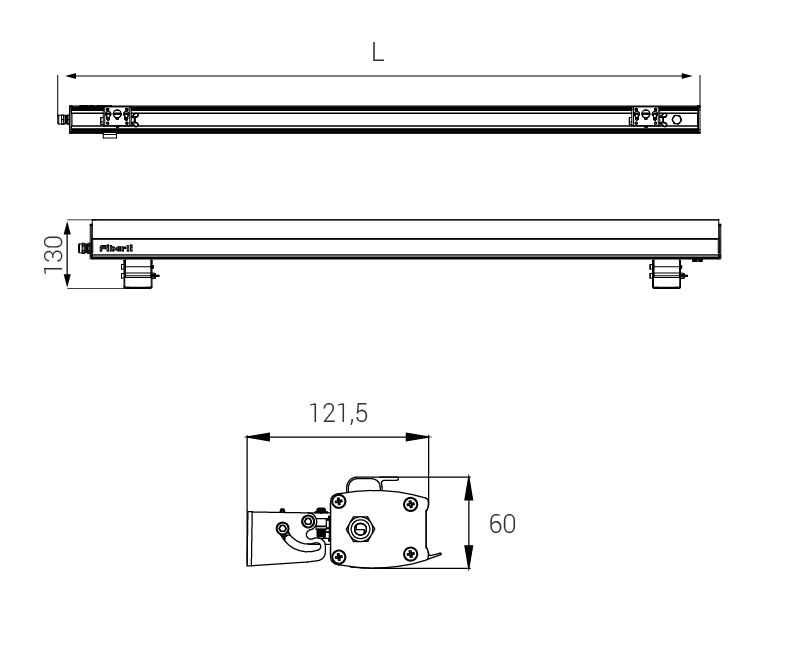

Technical Draw
