LLFX
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W/mt) | Luminous Flux (lm) |
|---|---|---|---|---|
| LLFX 140LED | WW-NW-CW | 24V DC | 5 | 350 |
| LLFX 140LED | WW-NW-CW | 24V DC | 10 | 672 |
| LLFX 140LED | WW-NW-CW | 24V DC | 15 | 932 |
| LLFX 80LED-DMX | RGB | 24V DC | 5 | - |
| LLFX 80LED-DMX | RGB | 24V DC | 10 | - |
| LLFX 80LED-DMX | RGB | 24V DC | 15 | - |
| LLFX 80LED-DMX | RGBW | 24V DC | 5 | - |
| LLFX 80LED-DMX | RGBW | 24V DC | 10 | - |
| LLFX 80LED-DMX | RGBW | 24V DC | 15 | - |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
ELECTROMECHANICAL SPECIFICATIONS
• Bendable up to 30cm in diameter
• Full resistance with IP67 protection
• Anti-UV technology
• Solid silicone extrusion
• High color rendition
• PC side cover
• High corrosion resistance
Light Color Options
| WW:Warm White | 3000K |  |
RGBW | |
| NW:Natural White | 4000K | |
RGB | |
| CW:Cold White | 6500K |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| RGB |  |
||||||
| RGBA/W |
 |
||||||
Bending Options
SIDE OUTPUT
TOP OUTPUT
Viewing Side
SIDE OUTPUT
TOP OUTPUT
Mounting
ALUMINUM CLIP
DOUBLE SIDED TAPE
IP Protection Class
24
Connection Options
IP SOCKET BOTTOM OUTPUT
IP SOCKET FRONT OUTPUT
IP SOCKET SIDE OUTPUT

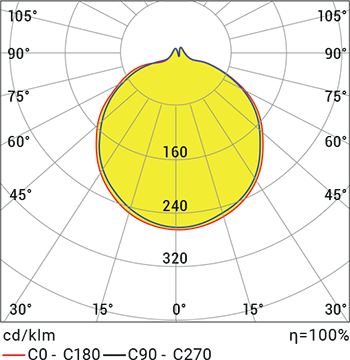

Product Diagrams

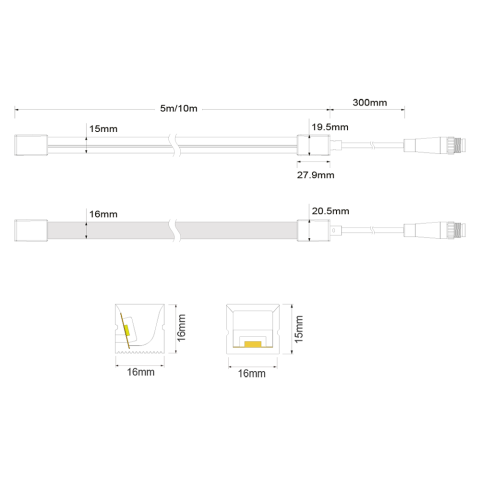

Technical Draw
Documents
Projects
