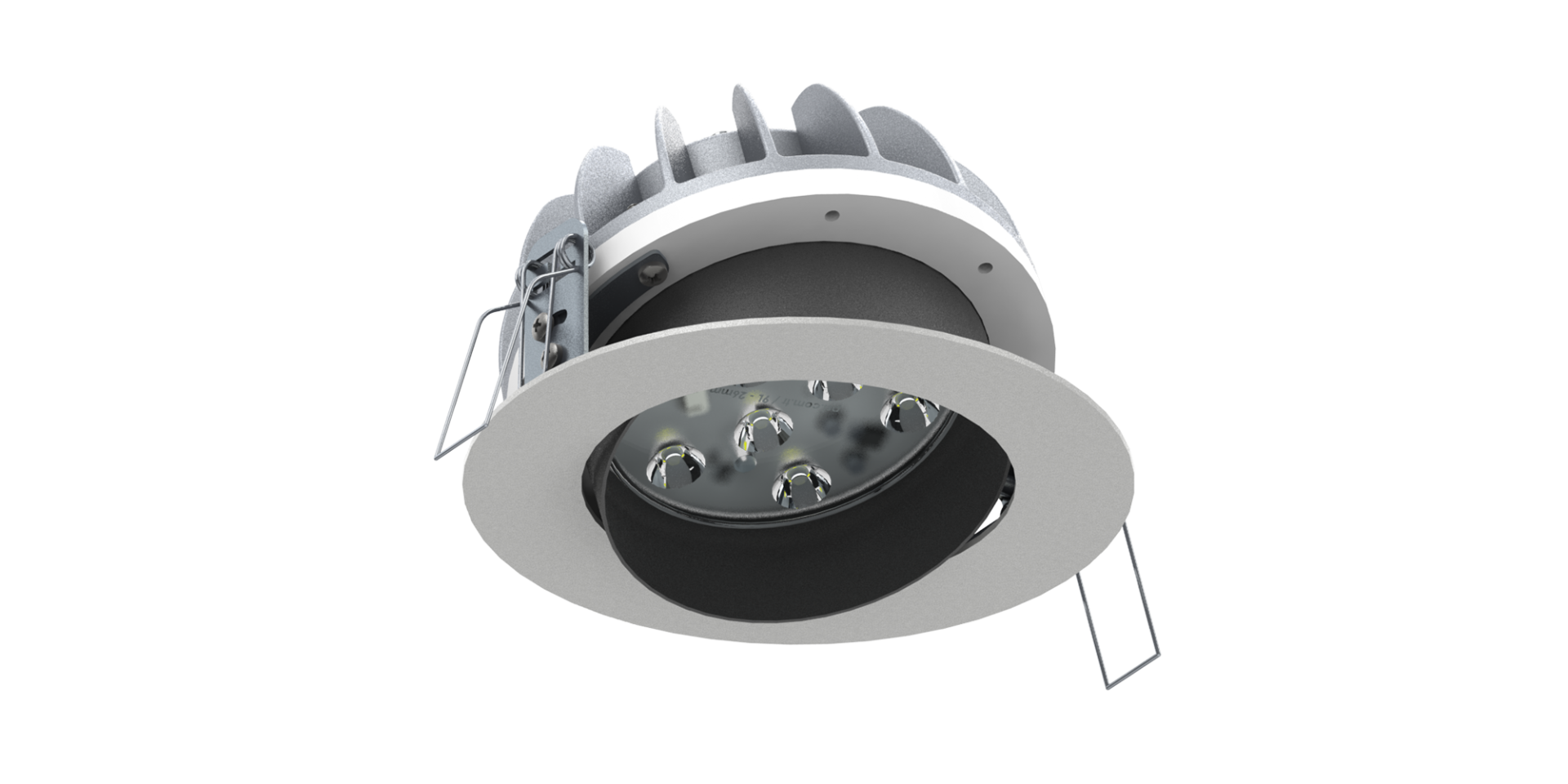

CDP3
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
Bore Diameter (C) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| CDP3 09 | WW-NW-CW | 220-240V AC | 12 | 1.225 | Ø170 | 1,4 |
| CDP3 09 | WW-NW-CW | 220-240V AC | 17 | 1.685 | Ø170 | 1,4 |
| CDP3 09 | WW-NW-CW | 220-240V AC | 23 | 2.395 | Ø170 | 1,6 |
| CDP3 09 | WW-NW-CW | 12-24V DC | 11 | 1.120 | Ø170 | 1,2 |
| CDP3 09 | WW-NW-CW | 12-24V DC | 15 | 1.580 | Ø170 | 1,2 |
| CDP3 09 | WW-NW-CW | 12-24V DC | 22 | 2.290 | Ø170 | 1,2 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection housing and DKP front frame
• Polycarbonate front glass
• Stainless connectors
• Suitable for recessed mounting
• Anti-glare reflector (RAL9005)
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting

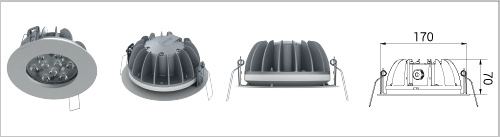

09: FIXED

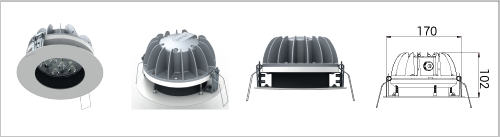

10: FIXED DEEP*
11: DEEP MOVABLE*

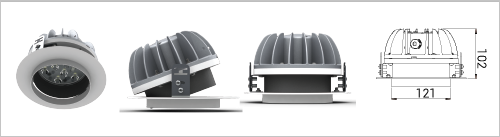

12: DEEP RECESSED MOVABLE*
*IP65 is not available
IP Protection Class
Housing Color Options
RAL9005
RAL9007
RAL9016

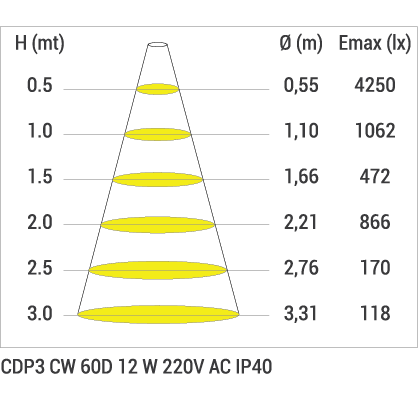

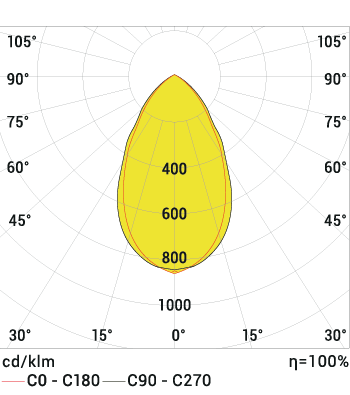

Product Diagrams

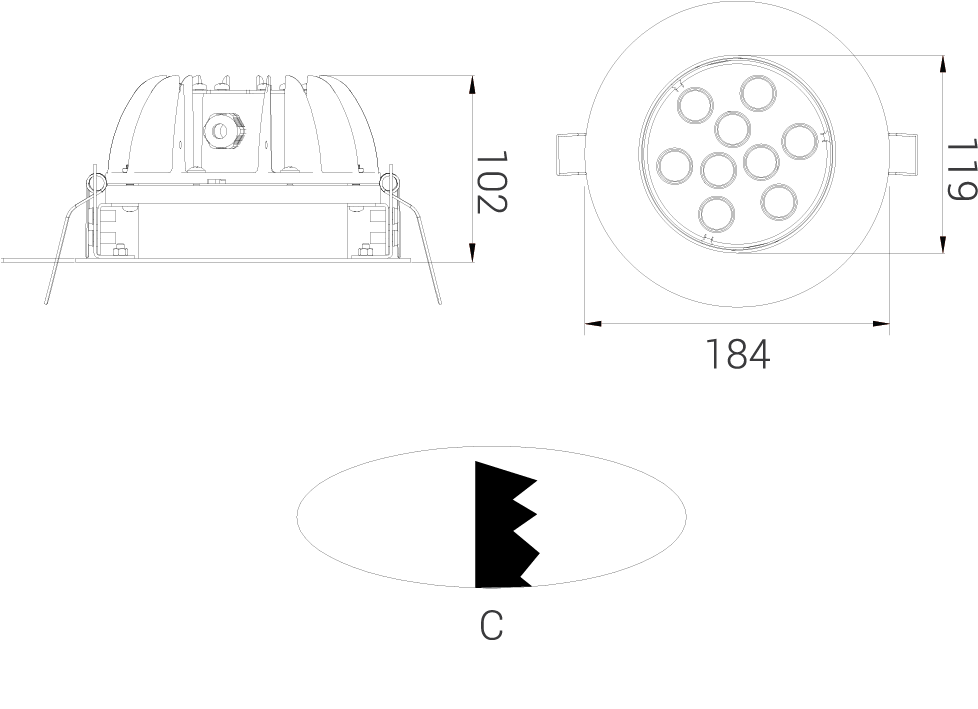

Technical Draw
Documents
Projects
