AC5KR
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
AC5KR is the most compact and minimal member of the AquaCroma family, combining aesthetics and performance for professional pool lighting. Its screwless front and spring mounting ensure a flawless surface appearance.
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| AC5KR18 | WW-NW-CW | 12-24VDC | 21 | 2100 | 2,3 |
| AC5KR18 | WW-NW-CW | 12-24VDC | 32 | 3200 | 2,3 |
| AC5KR18 | WW-NW-CW | 12-24VDC | 46 | 4800 | 2,3 |
| AC5KR18 | WW-NW-CW | 12-24VDC | 36 | - | 2,3 |
* Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.
* RGB products can be produced in 12-24 V DC and product values may vary.
Key Features
- Professional LED underwater lighting
- Screwless front frame for clean aesthetics
- Spring-based mounting system
- Compact and minimal recessed structure
- IP68 waterproof protection
- Multiple beam angle options
MAIN SPECIFICATIONS
- Recessed installationSpring mounting system
- Screwless front surface
- 12–24V / 24V operation options
- AC & DC compatibility
- Chrome body with tempered glass
- Compact 20 cm diameter
Light Color Options
Driver Options
Lens Options
XN: EXTRA NARROW ANGLE
N: NARROW ANGLE
M: MEDIUM ANGLE
XW: WITHOUT LENS
Accessories

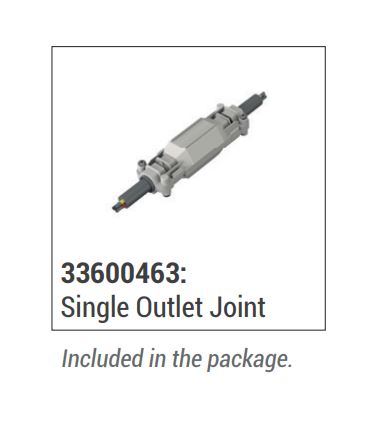

SINGLEOUTLETJOINT
MOUNTINGBOX
Mounting
SPRING MOUNTED
Technical Draw
Documents
