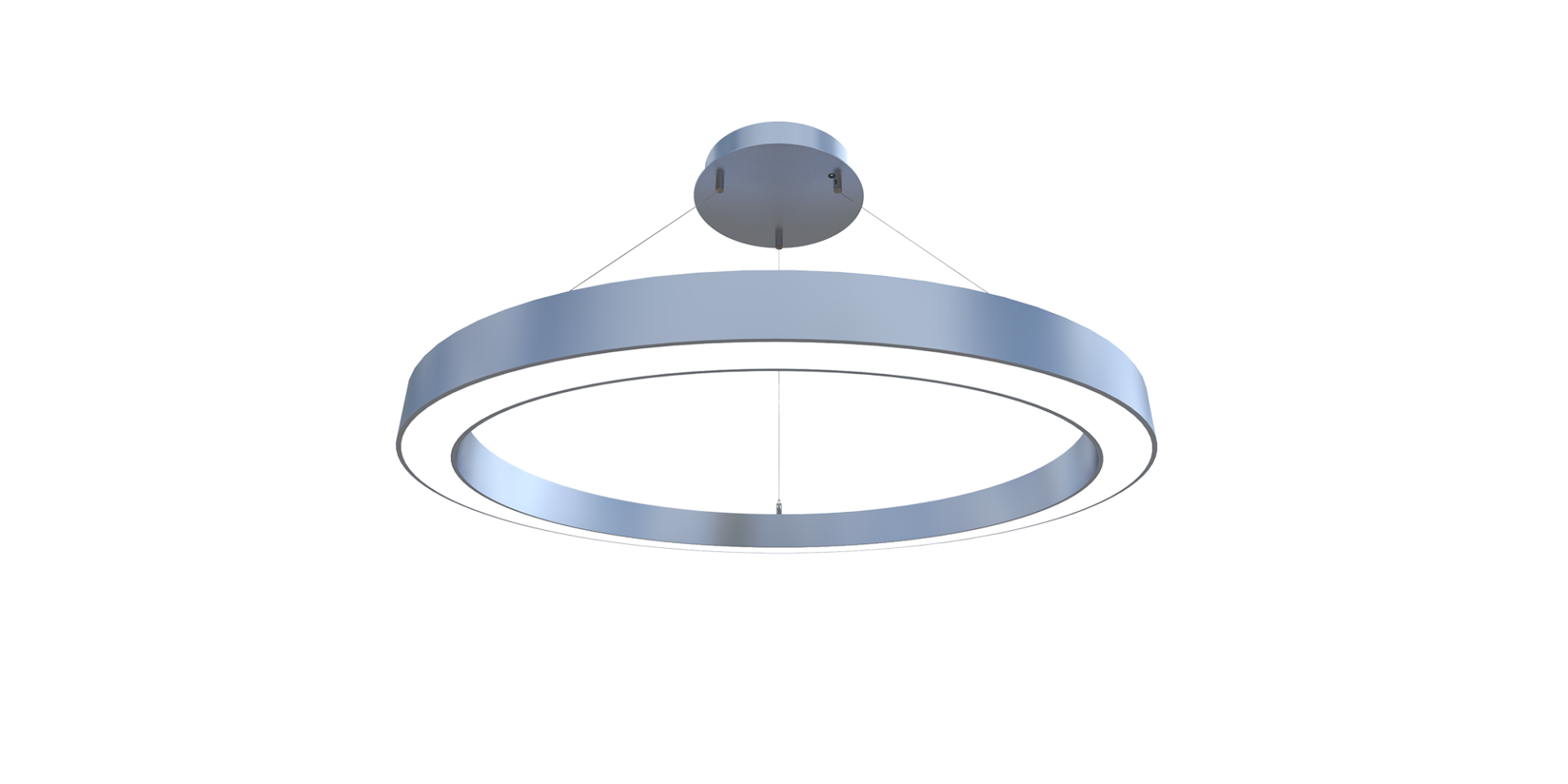

BLZM
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Dimensions (BxC)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| BLZM60 | WW-NW-CW | 220-240V AC | 40 | 3.000 | 600x60 | 4,8 |
| BLZM60 | WW-NW-CW | 220-240V AC | 60 | 4.500 | 600x60 | 4,8 |
| BLZM90 | WW-NW-CW | 220-240V AC | 60 | 4.500 | 900x60 | 5,8 |
| BLZM90 | WW-NW-CW | 220-240V AC | 90 | 6.750 | 900x60 | 5,8 |
| BLZM120 | WW-NW-CW | 220-240V AC | 85 | 6.375 | 1200x60 | 7,4 |
| BLZM120 | WW-NW-CW | 220-240V AC | 125 | 9.375 | 1200x60 | 7,4 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• Slim design with 60mm profile
• High efficient homogeneous light by plexy glass diffused cover
• Suitable for pendant mounting
• Product length standards ; 90cm, 120cm, 150cm and 180cm.
• Customization with different body color and coating options
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Accessories
33600190:DIMMER
Housing Color Options
01. ANODIZED
29. WALNUT
30. DARK WALNUT
31. OAK
32. LIGHT WALNUT
RAL9005
RAL9016

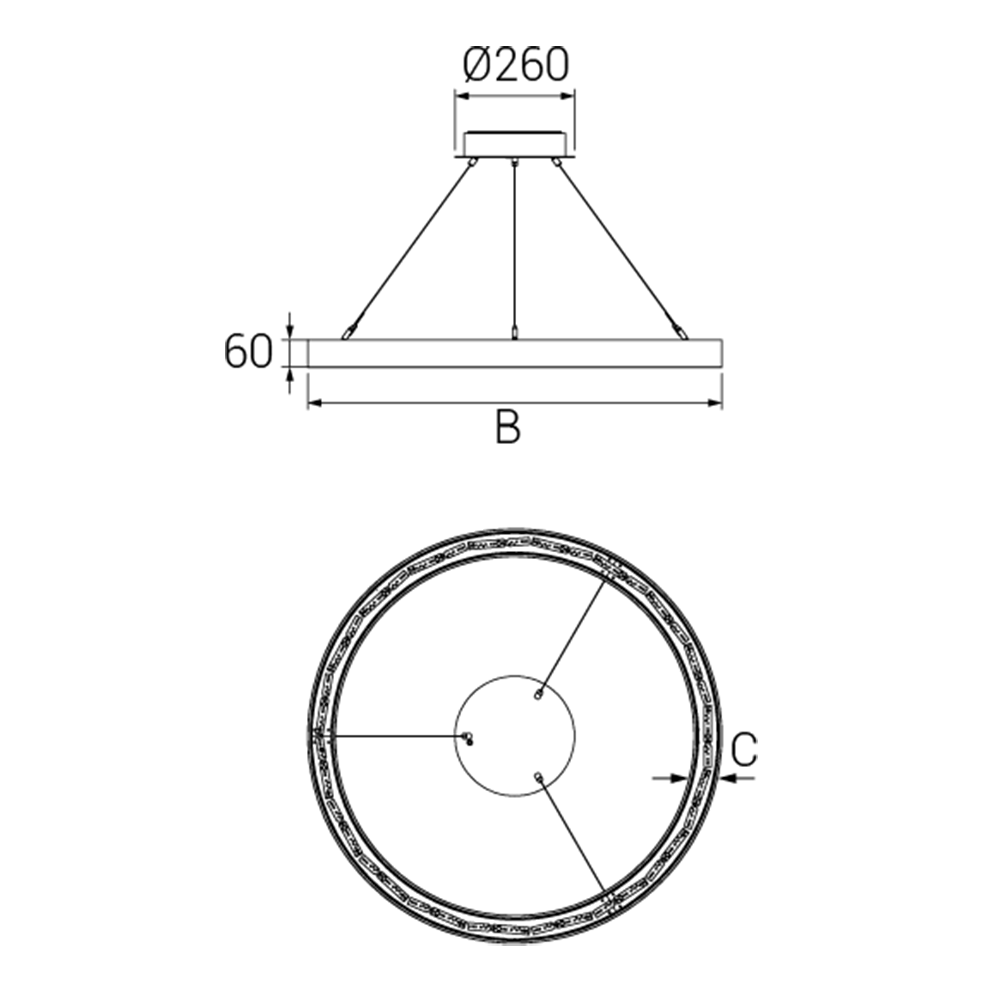

Technical Draw
Documents
Projects
