Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
Bore Diameter (C) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| CDP1 03 | WW-NW-CW | 220-240V AC | 4 | 350 | Ø100 | 0,9 |
| CDP1 03 | WW-NW-CW | 220-240V AC | 8 | 700 | Ø100 | 1,1 |
| CDP1 03 | WW-NW-CW | 12-24V DC | 4 | 350 | Ø100 | 0,8 |
| CDP1 03 | WW-NW-CW | 12-24V DC | 8 | 700 | Ø100 | 0,8 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection housing.
• Tempered luminaire glass.
• DKP front flange.
• Stainless connectors.
• Suitable for recessed mounting.
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
Mounting
09: FIXED
10: FIXED DEEP*
Upper Piece Options
27. ROUND FLANGE
28. SQUARE FLANGE
Housing Color Options
RAL9005
RAL9007
RAL9016

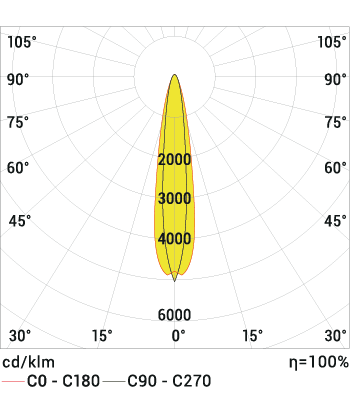

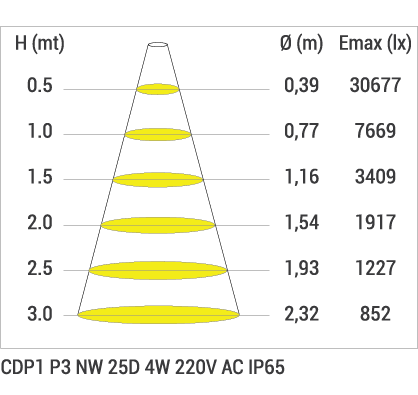

Product Diagrams

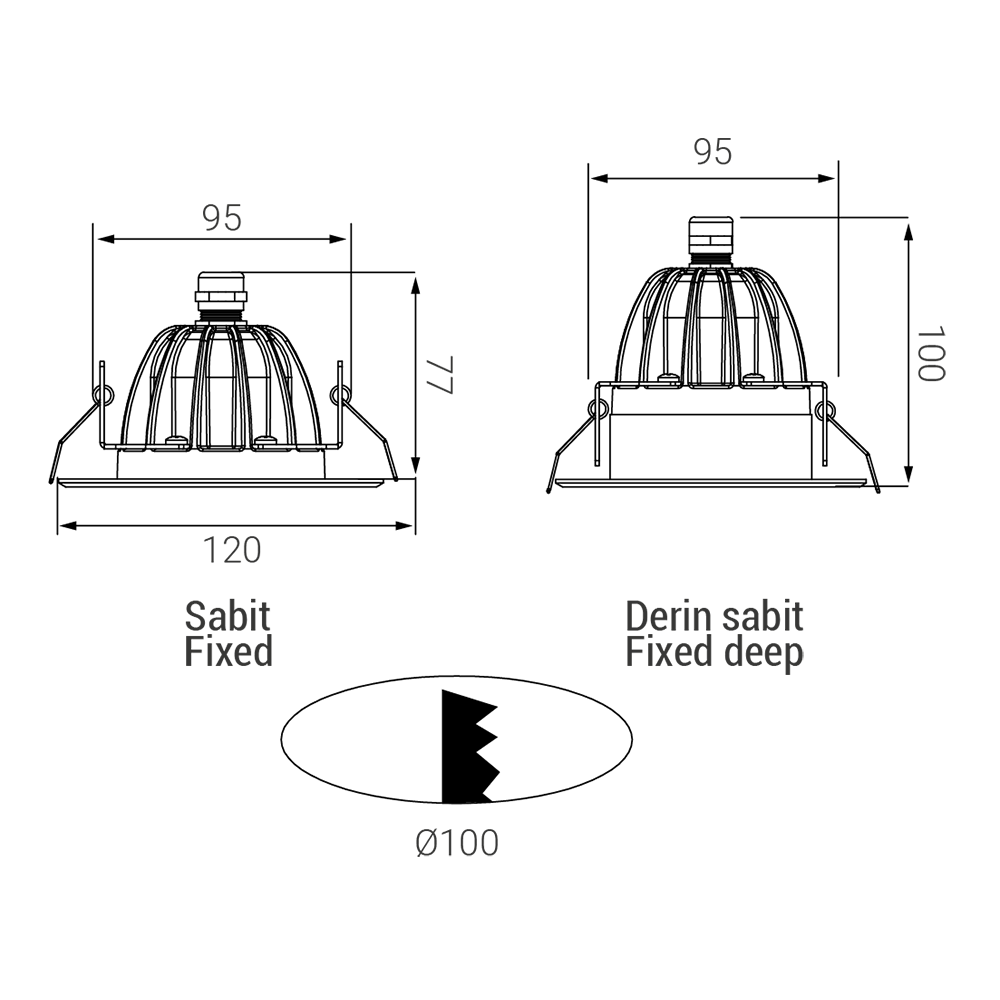

Technical Draw
