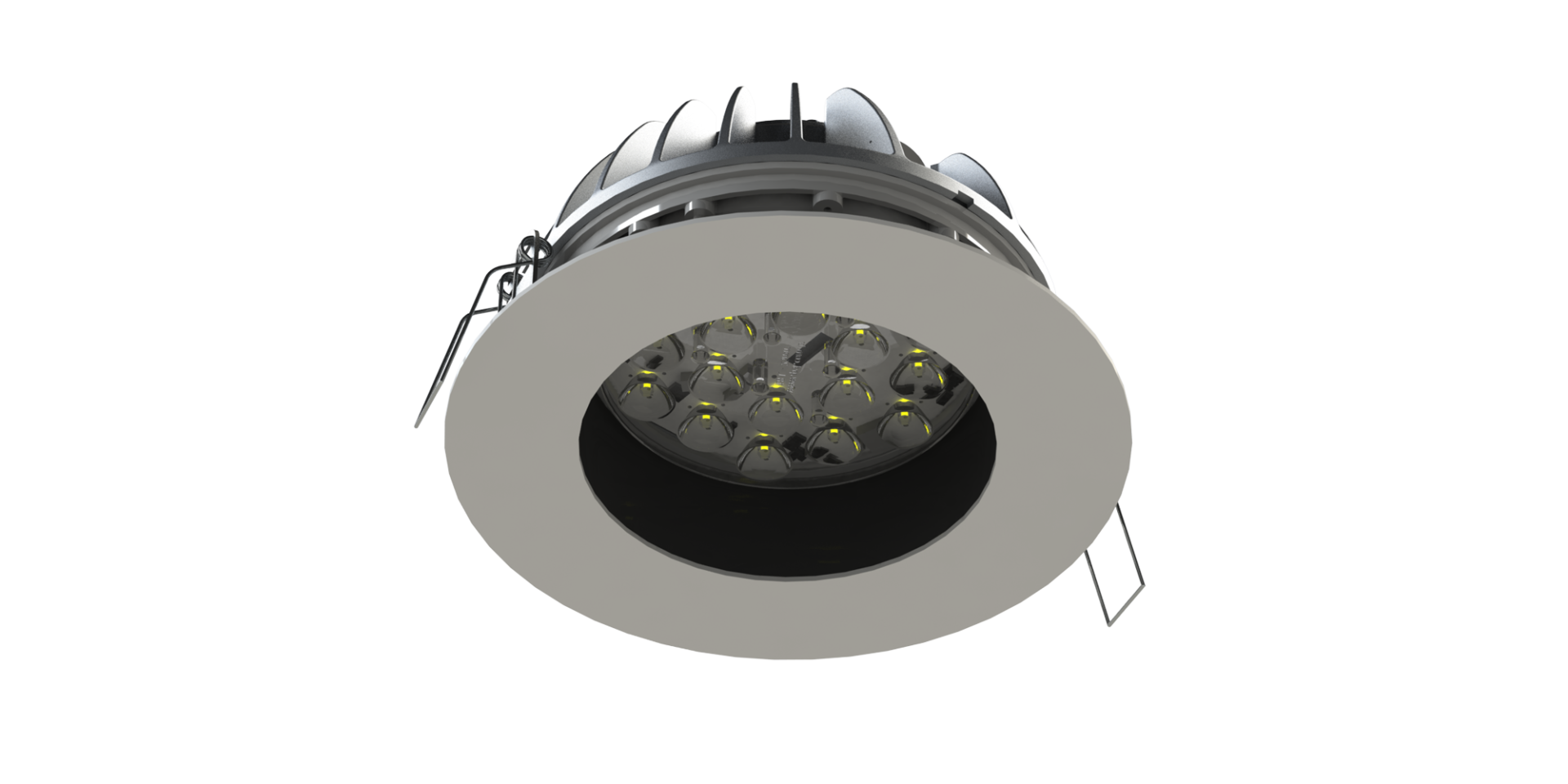

CDP5
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous | Product Weight |
|---|---|---|---|---|---|
| CDP5 18 | WW-NW-CW | 220-240V AC | 20 | 2408 | 1,8 |
| CDP5 18 | WW-NW-CW | 220-240V AC | 36 | 3465 | 1,9 |
| CDP5 18 | WW-NW-CW | 220-240V AC | 45 | 4335 | 2 |
| CDP5 18 | WW-NW-CW | 12-24V DC | 22 | 2185 | 1,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection housing and steel front frame
• Polycarbonate front glass
• Stainless connectors
• Suitable for recessed mounting
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting

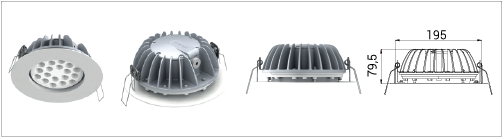

09: FIXED

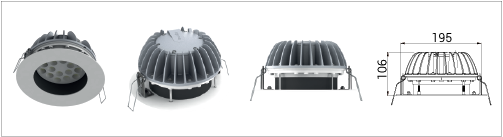

10: FIXED DEEP*

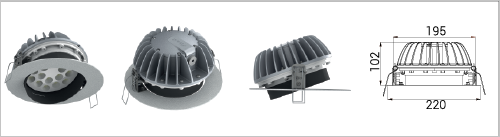

11: DEEP MOVABLE*
12: DEEP RECESSED MOVABLE
*IP65 is not available
IP Protection Class
Housing Color Options
RAL9005
RAL9007
RAL9016

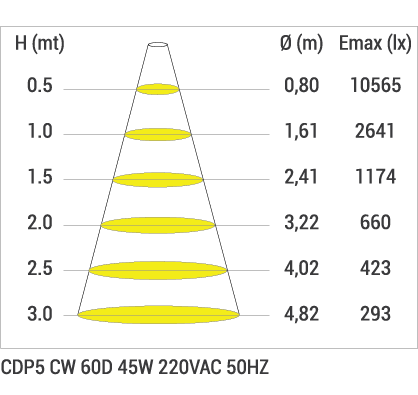

Product Diagrams

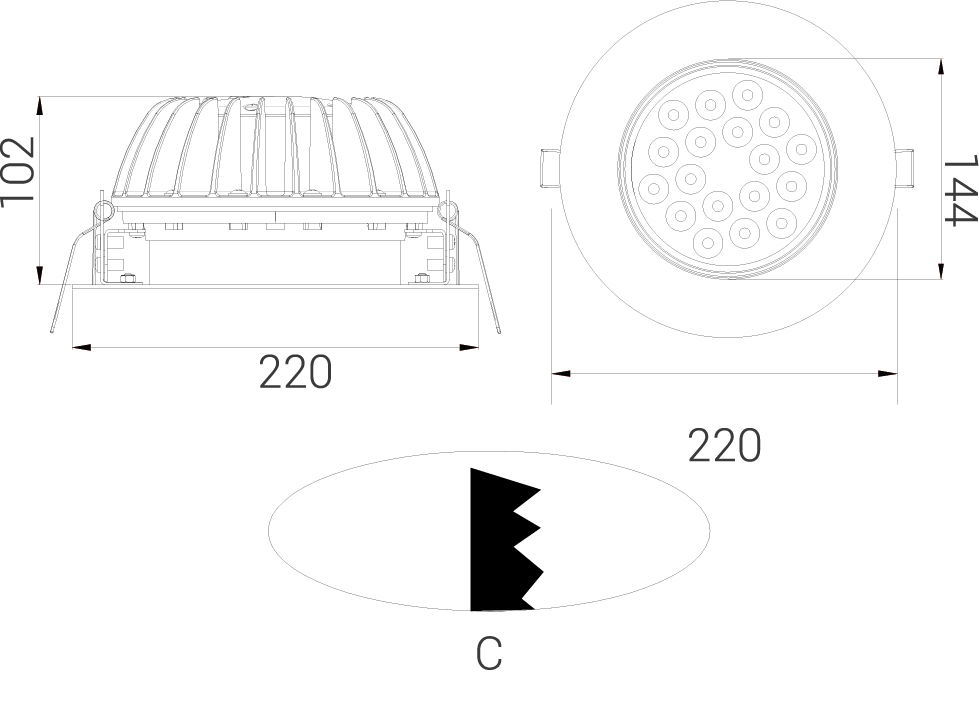

Technical Draw
