Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| LLK30LED | WW-NW-CW | 24V DC | 2,4 | 240 | 0,3 |
| LLK30LED | WW-NW-CW | 24V DC | 12 | 1.350 | 0,3 |
| LLK45LED | WW-NW-CW | 24V DC | 18 | 2.025 | 0,3 |
| LLK60LED | WW-NW-CW | 24V DC | 4,8 | 480 | 0,3 |
| LLK60LED | WW-NW-CW | 24V DC | 7,2 | 720 | 0,3 |
| LLK60LED | WW-NW-CW | 24V DC | 14,4 | 1.440 | 0,3 |
| LLK90LED | WW-NW-CW | 24V DC | 7,2 | 720 | 0,3 |
| LLK90LED | WW-NW-CW | 24V DC | 10,8 | 1.100 | 0,3 |
| LLK120LED | WW-NW-CW | 24V DC | 9,6 | 960 | 0,3 |
| LLK180LED | WW-NW-CW | 24V DC | 14,4 | 1.450 | 0,3 |
| LLK30LED | RGB | 24V DC | 7,2 | - | 0,3 |
| LLK45LED | RGB | 24V DC | 10,8 | - | 0,3 |
| LLK60LED | RGB | 24V DC | 14,4 | - | 0,3 |
| LLK90LED | RGB | 24V DC | 21,6 | - | 0,3 |
| LLK60LED | RGB/W | 24V DC | 14,4 | - | 0,3 |
| LLK30LED-DMX | RGBW/A-Pixel | 24V DC | 8,2 | - | 0,3 |
*Power and Lumen values provided are based off of a coverless product with cold white (CW) LED.
** The same power values for white colors are applicable for R,G,B,A as well.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• Stainless connectors
• PVC end caps with UV protection
• Transparent or diffused polycarbonate top cover with UV protection.
• Cooling capacity up to 21,6 W/m
• Suitable for surface mounting
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |  |
RGBA | ||
| A:Amber | 590nm |
*Different colors are optional
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
|
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Mounting
01 STEEL CLIP
02 DOUBLE SIDED TAPE
03 ALUMINUM CLIP
04 ALUMINUM CLIP TALL
05 ANGLED CLIP
Upper Cover Options
0: COVERLESS (IP20)
01: DIFFUSED (IP40)
02: TRANSPARENT (IP40)
IP Protection Class
17
46
9
Connection Options
01 CABLE SIDE OUTPUT
02 IP SOCKET SIDE OUTPUT
03 VERTICAL SOCKET
04 HORIZONTAL SOCKET
06 CABLE BOTTOM OUTPUT
07 IP SOCKET BOTTOM OUTPUT

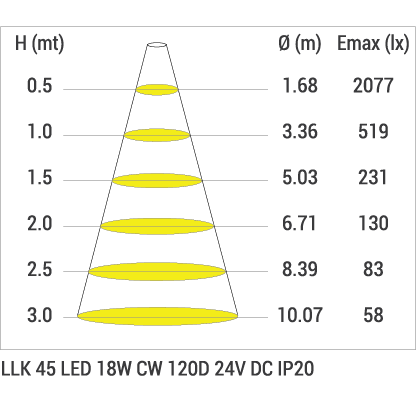

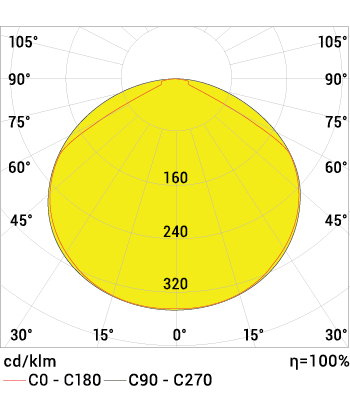

Product Diagrams

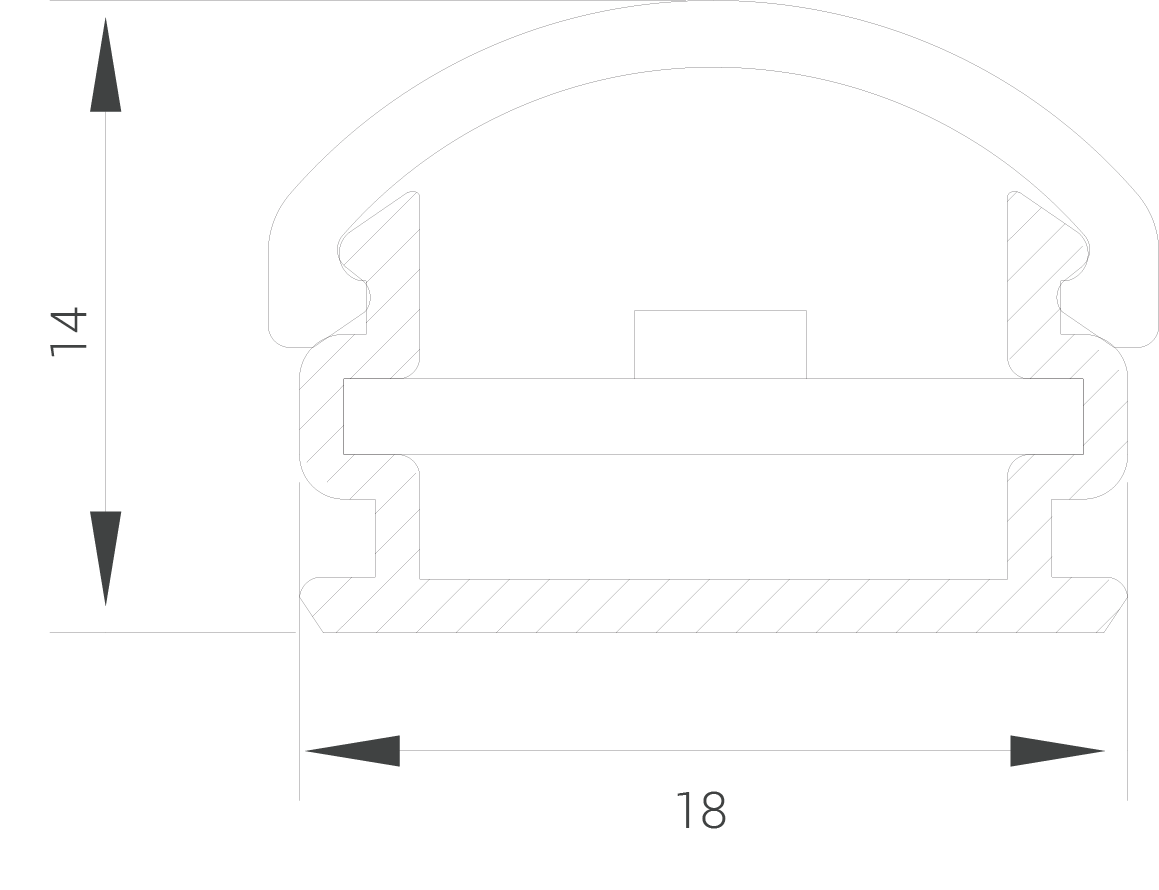

Technical Draw
Documents

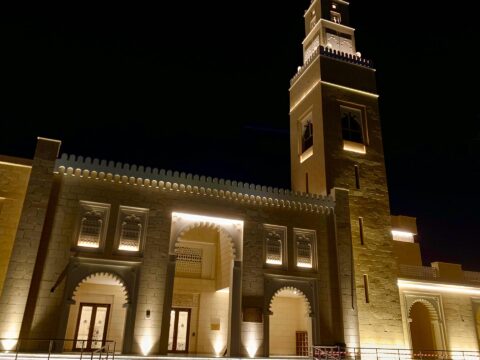

Projects
